AISG RET Control Cable Connector Customized AISG Inner Cables Waterproof IP68

Name: AISG RET Control Cable Connector Customized AISG Inner Cables Waterproof IP68
Brand: BEDE
Price: 1 USD

Wholesale AISG RET Control Cable Connector Customized AISG Inner Cables Waterproof IP68 from china suppliers

Brand Name : BEDE

Model Number : AISG-3342

Certification : CE RoHS

Place of Origin : China

MOQ : 120pcs

Price : negotiation

Payment Terms : T/T, Western Union,

Supply Ability : 5800 pcs per day

Delivery Time : 4 days after payment

Packaging Details : packing in PE bag each and 120pcs per carton

style : AISG fixed connector male and female

wire gauge : 18AWG

Insulation resistance : 5MΩ min

Contact resistance : 3Ω max

waterproof : IP68

applicable temperature : -40 ~ +85℃

Contact Now

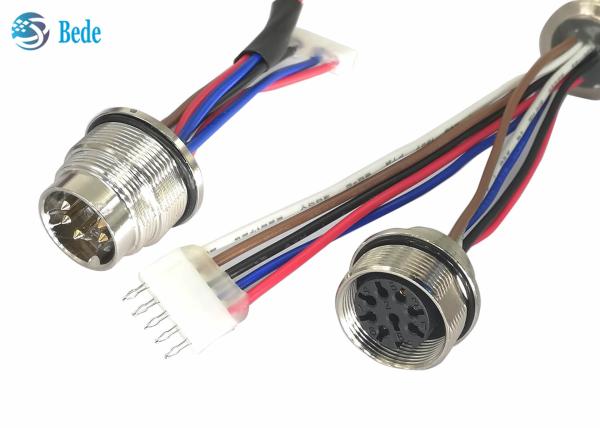

AISG RET control cable connector customized AISG inner cables waterproof IP68

Structure

1. contact pins, brass with silver plated,

2. male connector, this end can be customized as your needed

3. 18AWG wire, length 85 105 mm in stock, can be customized

4. O-ring, rubber ring for waterproof

5 AISG male connector, AISG C485 fixed connector style A1, housing material is copper with nickel palted

6. Contact pins, brass material with gold plated

7. insulator, PBT material

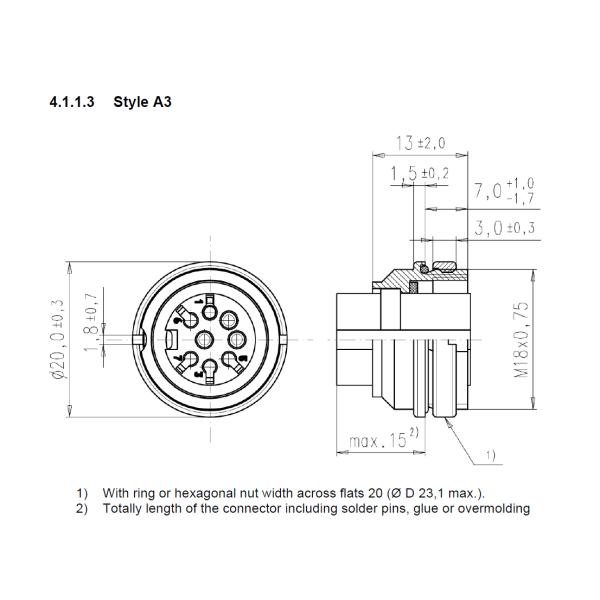

8. AISG female connector, Fixed connector, rear panel mounting, AISG C485 style A3

Remark:

1. the wire between 2 AISG connector length 60mm in stock, customization available

2. The positions marked ①②③ need to be sealed with hot melt glue or epoxy glue

3. Wires can be shielded or heat shrinkable as required, know more please feel free to contact us

4. About more infomation of AISG male and female connector, refer to AISG C485

AISG RET Control Cable Connector Customized AISG Inner Cables Waterproof IP68

Connection Pin Location

PIn No.	1	2	3	4	5	6	7	8
wire color	blue	/	white	/	brown	red	black	/
